Power Module
Power Module
30/40kW
The SETEC Plus DC charging module is a high-performance solution designed for power factor adjustment and reactive power compensation. It adopts a three-phase AC input without a neutral line, delivering wide adjustment and compensation ranges, high efficiency, high power density, and low harmonic distortion. The 30kW module is UL-certified, ensuring compliance with international safety and reliability standards.
High Efficiency≥96.5% High Efficiency≥96.5%
Max. Current 135A Max. Current 135A
Mute Mode ≤60 db Mute Mode ≤60 db
Supports CAN Supports CAN
Standby Power≤12kW Standby Power≤12kW
Voltage Range 100-1000V Voltage Range 100-1000V
Get a Quote Brochure

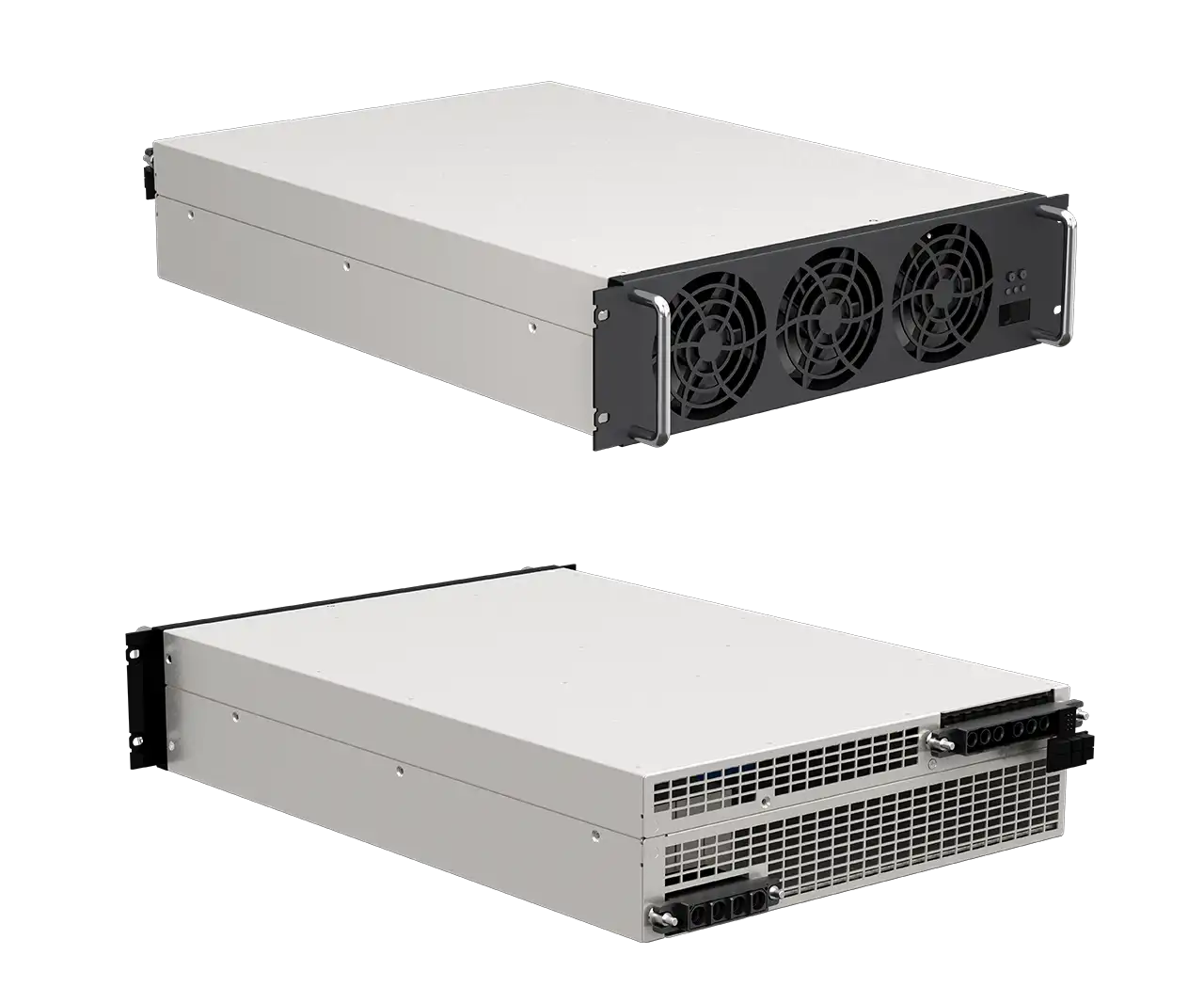

power-module-30kW-4-setecpower

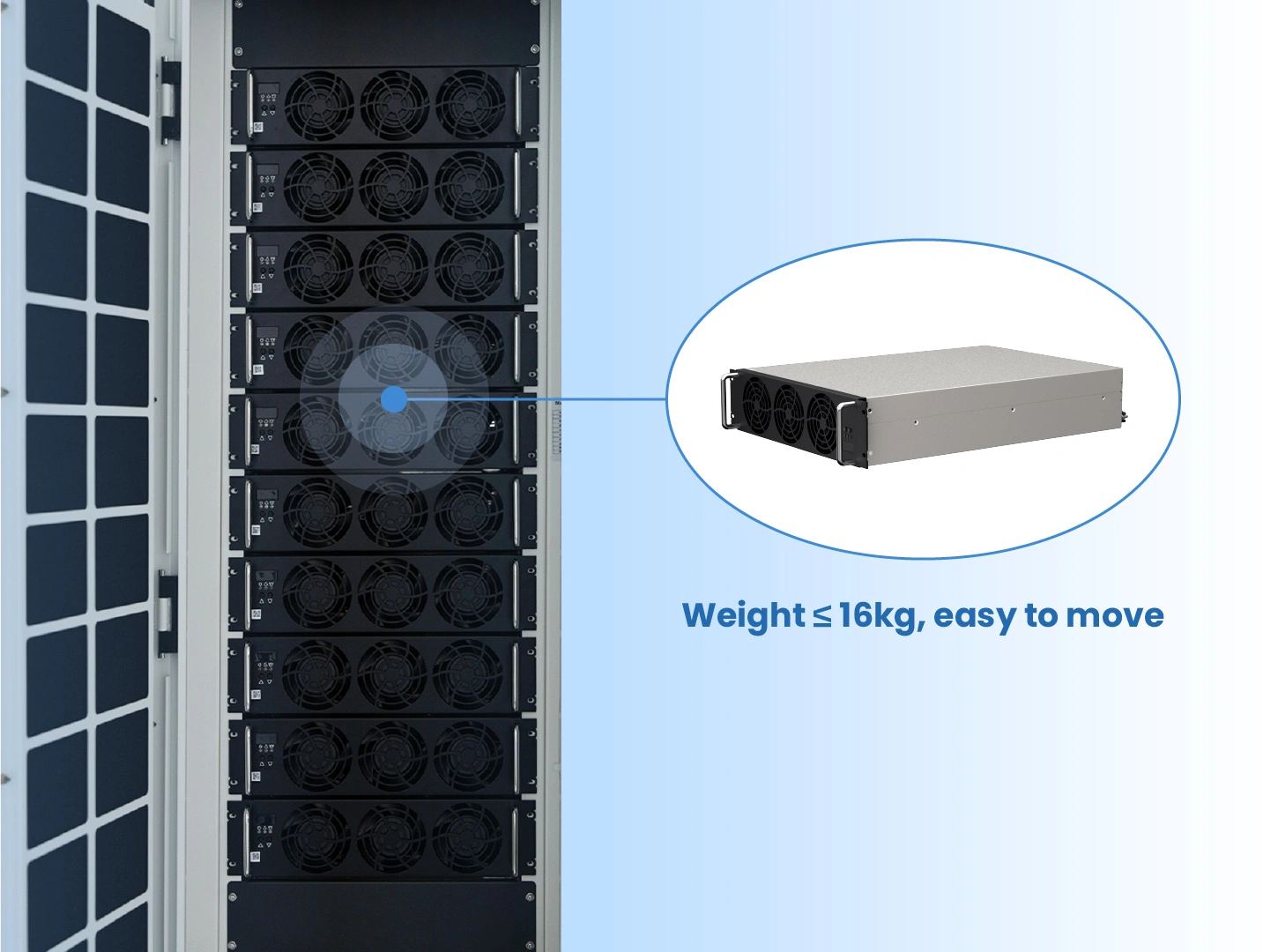

Hot-swappable module design
Hot-swappable module design
The module supports hot-swapping between charging systems, allowing installation or replacement without interrupting overall operation.

This design streamlines maintenance, prevents service downtime, and reduces risks associated with electrical component failures. It enhances both safety and operational reliability, providing a more stable solution for demanding charging environments.

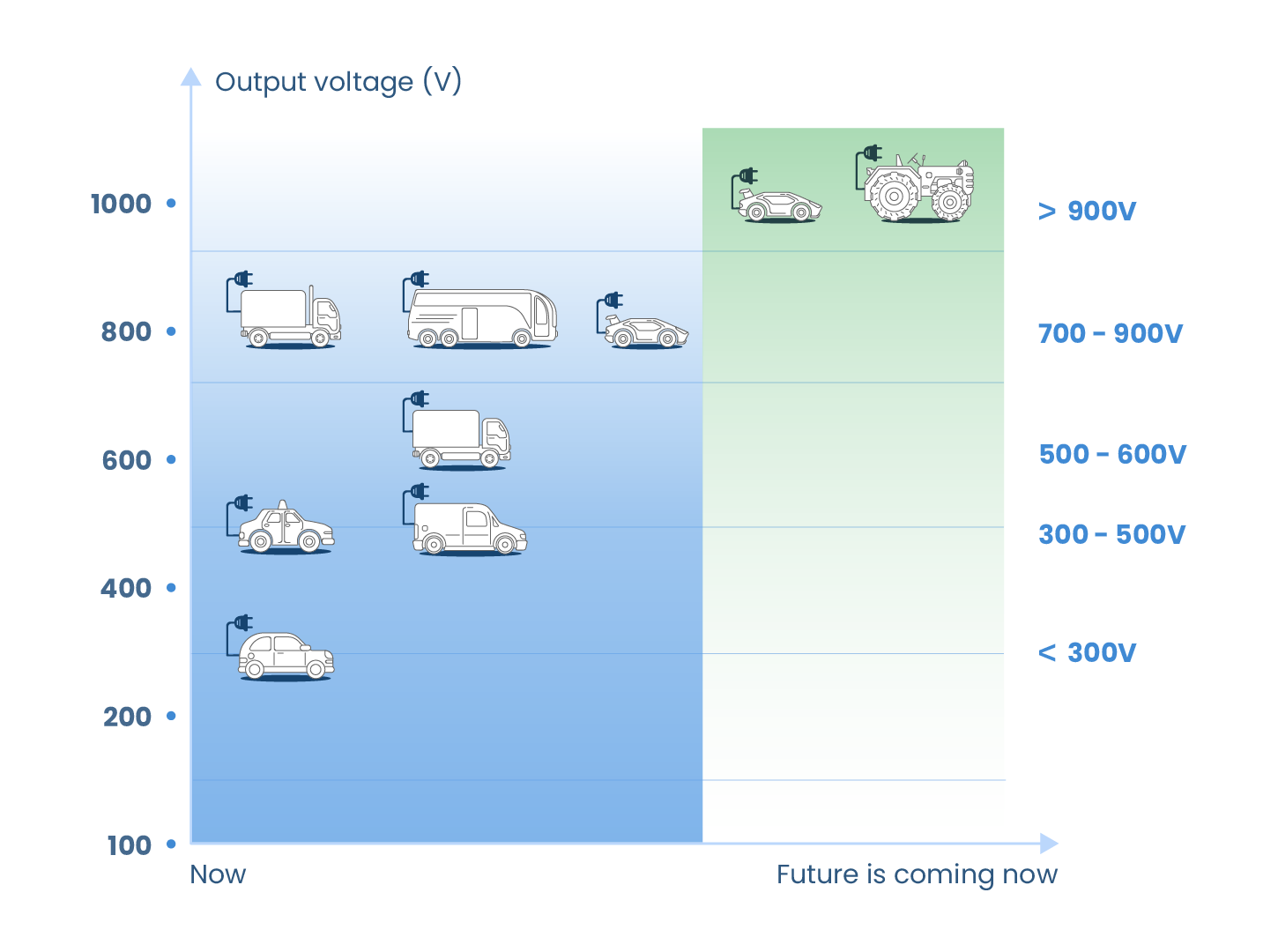

Wide output voltage range
Wide output voltage range
The module offers a wide output voltage range of 100–1000V with constant power delivery across the entire span, ensuring compatibility with both current and future EV models and supporting long-term technology readiness.

Its extended constant-power range significantly improves the power utilization and operational efficiency of DC chargers, helping CPOs achieve higher site revenue.
Specifications
Model30kW40kW
Input
Power Supply3W+PE3W+PE
Rated Voltage380380
Max. Input Current60A80A
Frequency50Hz/60Hz±5%
Standby Power≤12W
Output
Maximum Power30kW40kW
Max. Current100A135A
Rated Power30kW40kW
Electrical Parameter
Power Factor> 0.99 @ full load
THD＜5%
Efficiency≥95.6%≥96.5%
Steady Voltage Accuracy≤±0.5%
Harmonic current≤±1%
Voltage Deviation≤±0.5%
Current Deviation≤ ±1% when load current is greater than 30 A
≤ ±0.3 A when load current is less than 30 A
Ripple & Noise (Max.)±1%(Peak)
Soft Start Time3~7s
Communication
ConfigurationCAN
ProtocolCustom protocol
Environment
Cooling MethodAir-cooled
Noise<60dB
Work Temperature-40℃ to +70℃
Work Humidity10% to 95%
Work Altitude≤2000m


power-module-30kW-4-setecpower
