GLOBAL MOTORS (MG MOTORS MONGOLIA) wanted to add DC charging for visiting vehicles at its automotive service site in Ulaanbaatar’s new urban area. The customer needed a CHAdeMO connector, wanted to limit initial construction work and needed the option to reuse the equipment if the site layout changed.
The site was still under development, with parking and equipment positions yet to be finalized. The customer needed charging before the overall layout was settled. Committing to a permanent charger position could create additional foundation and cable work during later changes, so the solution needed to support current use while allowing future relocation.
The customer’s requirements covered construction scope, outdoor placement, future relocation and vehicle compatibility:
Control upfront construction investment, with no need for large-scale ground excavation and pre-buried pipeline works
Support outdoor use with installation and protective measures suited to the site
Allow flexible deployment. The portable charger can be relocated and reused as needed even after fixed installation
Support DC fast charging, with a CHAdeMO-compatible interface matched to the vehicle types served at the site
SETEC POWER supplied one 10kW PowerPack portable DC charger with a CHAdeMO connector. The connector addressed compatibility with the vehicles served at the site, while the portable design preserved the option to move the equipment as the layout developed.

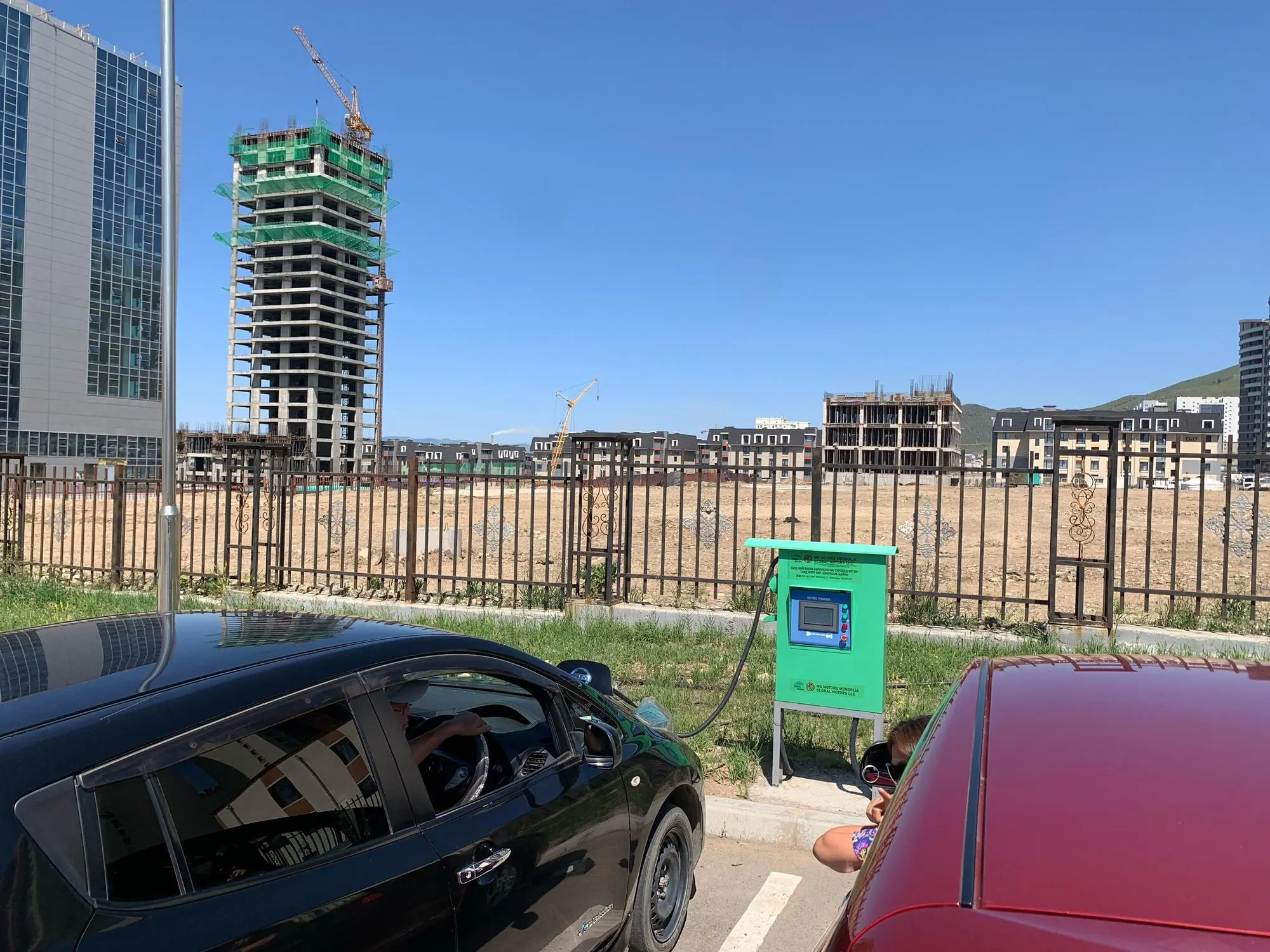

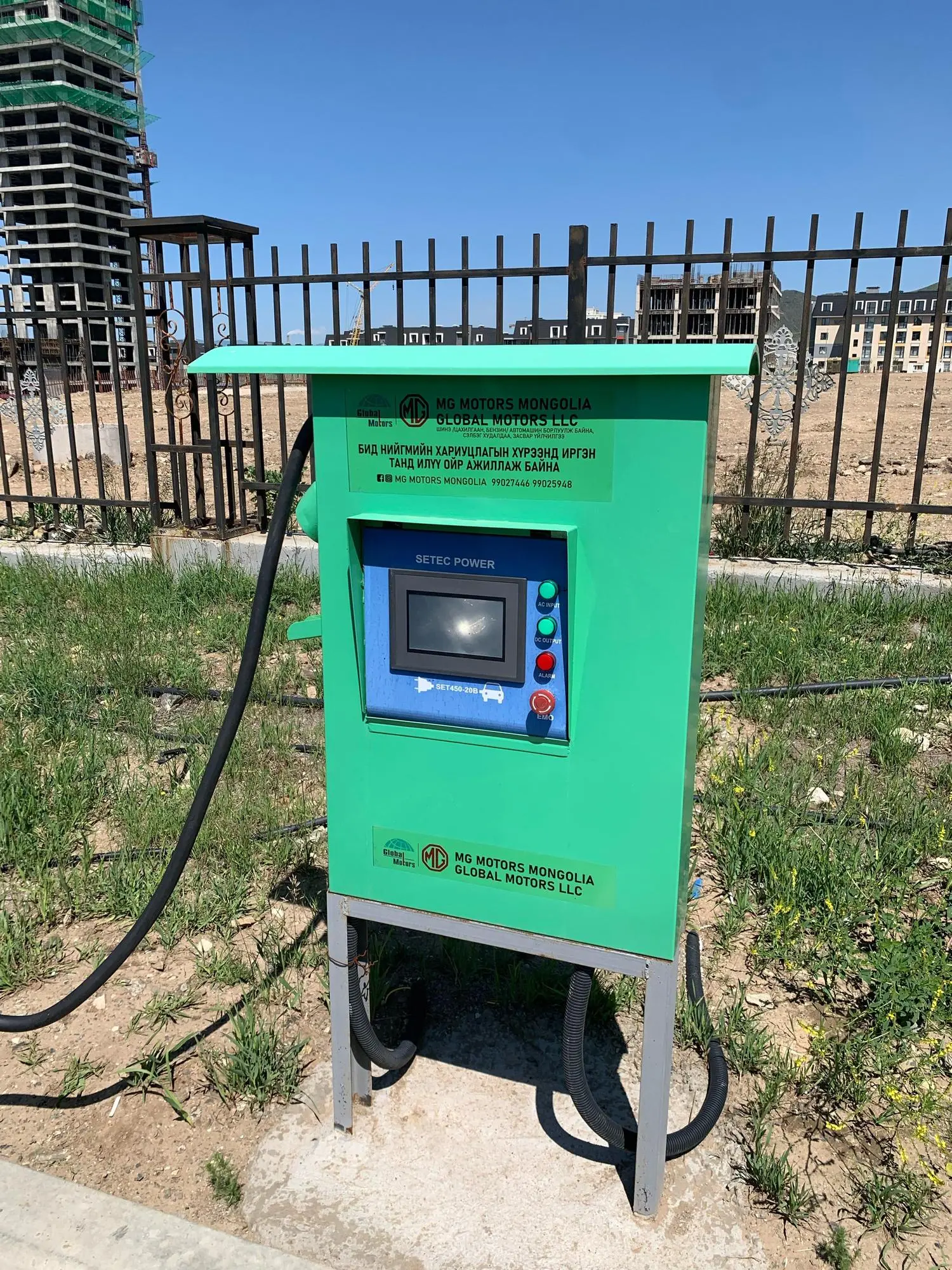

The portable unit was secured in place for daily use. The customer built a green protective enclosure and a simple concrete plinth to house and secure it. After connection to the site power circuit, the charger entered service. This arrangement established a charging point beside the parking area while keeping the unit available for later redeployment.
| Customer requirement | How the solution addresses it |
| Introduce charging at the current site | A 10kW PowerPack provides DC charging after connection to the site power circuit |
| Serve compatible vehicles | The project unit is equipped with a CHAdeMO connector |
| Place equipment beside outdoor parking | A customer-built enclosure and plinth complement the IP54 rating stated; suitability depends on installation conditions |
| Accommodate future layout changes | The portable unit can be redeployed, subject to power and installation checks at its new position |
The installation is in operation, allowing the customer to provide on-site DC charging for compatible vehicles using a unit rated at 10kW. It addresses the immediate need to introduce charging before the overall site layout is finalized.
If the layout changes, the customer can retain the charging equipment and relocate it to another position. This is a provision for future use, rather than evidence of a completed relocation or measured cost savings. Redeployment will still require an assessment of power supply, cabling, mounting and any necessary site work.
No. The unit can be redeployed, but the new location still needs suitable power, cabling and mounting. This installation uses a client-built protective enclosure and a simple concrete plinth.
